DETAILS
The YS-V520.1 VFFS bagging machine is a workhorse, capable of packing at up to 60 bags per minute, consistently, accurately and reliably.
Packing speed: 5-60bpm depends on film and products material
Technical details for YS-V520 VFFS Bagging Machine - Form Fill Seal
Model | YS-V520.1 |
Film width | 180~520mm (8'~21') |
Bag width | 80~250mm (3'~10') |
Bag length | 100~300mm (4'~12') on a single pull |
Packing Range | 10-1000g (Varies with the nature of product and filling range) |
Packing Speed on PP | 10-60 bags/min |
Packing Speed on PE | 10~30 bags/min |
Film roll material | Printed/Unprinted Multi-layer laminates (Heat sealable Inner layer Rqd.) |
Film roll diameter | Reel outer Φ16 In. max. ; Reel core Φ3.0 In. |
Film thickness | 0.04~0.12mm |
Install Power | AC Single phase, 50Hz, 220V (48V is available on optional) |
Total Power | 4.0KW |
Air Consumption | 4CFM @6 bar |
Dimensions | 1550x1160x1480mm |
Weight | Approx. 550 kg |
Loading/Discharging Systems Multi-head scales Line vibration scales Volumetric cup dosing units Auger dosing unit Counter of Lump products Filler for liquids Filler for semi-liquids In-feeder conveyor Out-feeder conveyor Rotating table Check scales Metal detector | Optional Accessories Available On Demand Polyethylene seal system Left hand operating version Open-able Electric cabinet Bag support Gusset device Tear notches ( Easy opening cut device) Gas flushing devices Hole punch (Hanger, Euro or Round) Static eliminator Photocell for printed film registration Encoder for unprinted film Film splice assist unit Thermal transfer printer |

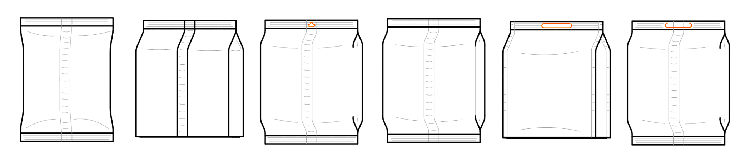

Bag styles
Our YS-V series Bagging machine comes as standard with a eye-mark sensor for printed films, a single forming set made to your specification and a hot foil date code printer.
It can be fitted with optional extras to offer additional functions such as Nitrogen flushing, Gusseted bags, Chain bag and Hole punch device.
